DYP CENTER PIVOT IRRIGATION MACHINE
DYP CENTER PIVOT IRRIGATION MACHINE
The central pivot irrigation system is also known as the pointer type sprinkler and the circular sprinkler. It is a irrigation device used the central pivot as a dot and realizes the irrigation area through the length of the irrigation radius. A water-saving and production-increasing irrigation machine in which the upper end is connected with a rotating bend pipe through a rotating mechanism (power collecting ring) and sprinkles water on the crops through a spraying system on a truss.
Structure characteristics
The core structure is made of hot dip galvanized steel pipe, Angle steel, steel plate, round steel and so on, used to 30 ° or less plots of land . Its characteristic is firm and durable, structure is reasonable, use range is wide, operation is simple, cost performance is high, it is the first selection that saves water to increase income, large area farmland irrigates. The central support shaft is firmly fixed on the cement base, which can well eliminate the force generated by the machine running on various irregular terrains, so as to make the water pipe rotate freely in a clockwise circle with a radius and irrigate the whole circular land.
|
Applied field:
It is applicable to a square round large block, such as can overcome acuities were 25 ° slope plot, applicability is wide and large irrigation area.
|
 |

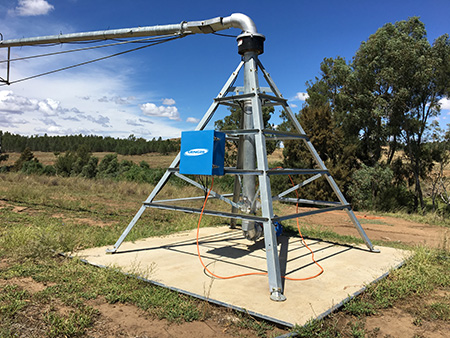

equipment shown:
